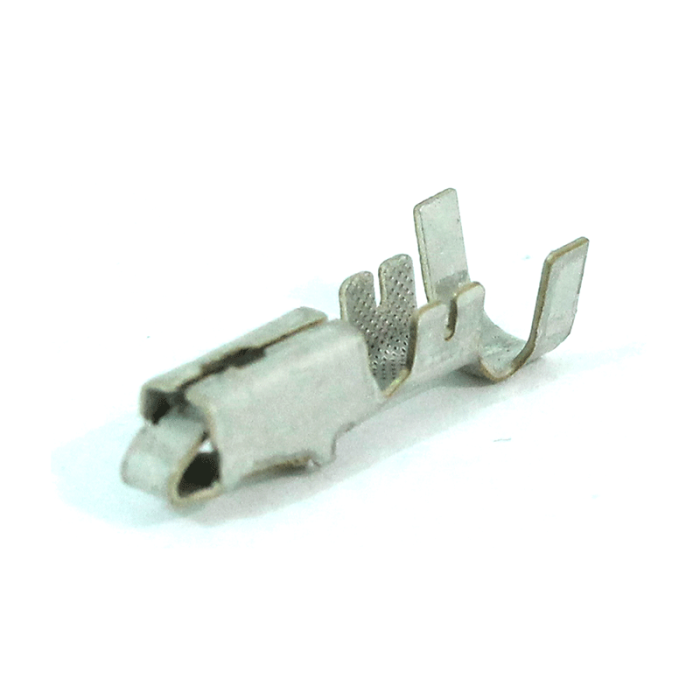

Ionnic P-12129493 Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 2.00 - 3.00 mm2 (Bag of 100)

Name: Ionnic P-12129493 Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 2.00 - 3.00 mm2 (Bag of 100)
Brand: IONNIC
Price: 34.45 AUD
Availability: InStock

Be the first to review this product

Special Price $34.45 Regular Price $39.15

In stock

SKU

P-12129493/100

Ionnic P-12129493 Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 2.00 - 3.00 mm2 (Bag of 100) is available to buy in increments of 1

Ionnic P-12129493 Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 2.00 - 3.00 mm2 (Bag of 100)

Details

Ionnic P-12129493 Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 2.00 - 3.00 mm2 (Bag of 100)

Part # :	12129493
Description :	Metri-Pack 280 Series Female Sealed Tin Plating Tang Terminal, Cable Range 2.00 - 3.00 mm2
Product Type :	Terminal
Status :	Active
Blade size [mm] :	2.8
Terminal Family :	M/P
Series :	280
Gender :	Female
Sealable :	Sealed
Material :	CuSn3Zn9
Weight [g] :	1
Plating :	Tin
Minimum Cable Diameter [mm] :	2.45
Maximum Cable Diameter [mm] :	3.80
Minimum Cable Core Cross Section [mm2] :	2.00
Maximum Cable Core Cross Section [mm2] :	3.00
Temperature Range :	-40 to 125
Voltage Drop :	Less than 3.0
RoHs compliant :	Yes
ELV compliant :	Yes
