Hella 6049 Backup Alarm

Hella 6049 Backup Alarm

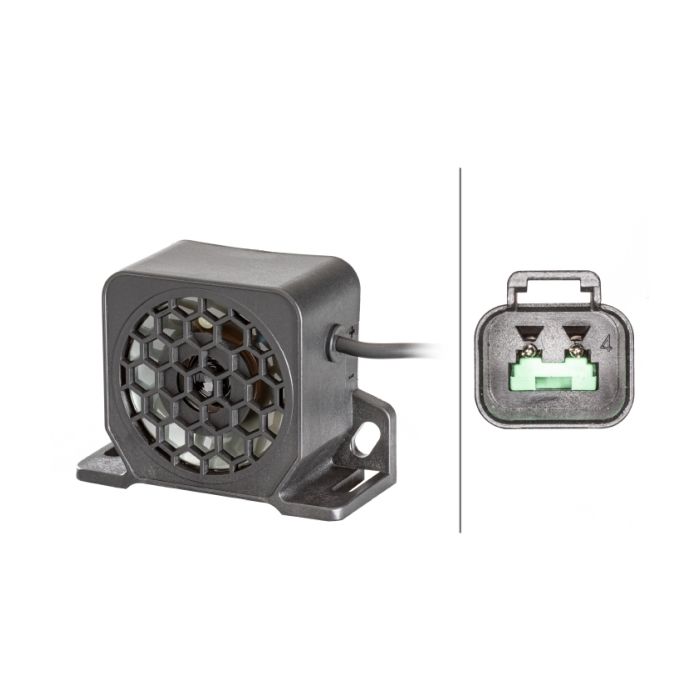

Genuine Hella backup alarm.

Back-up Alarm - BM40 - 97dB(A) - Electric - ECE - Housing Colour: Black - Bolted - Cable: 150mm - Plug: DEUTSCH plug - Quantity: 1

The reversing alarm is an indispensable element in dangerous working environments. The high-frequency alarm can actively prevent accidents. It gives commercial vehicles additional safety when manoeuvring and reversing. In some countries, the installation of a reversing alarm is mandatory for motor vehicles with limited rear visibility. The vehicle must have an audible reversing alarm that is louder than the ambient noise. A sound level of more than 90 dB is often prescribed. Structure and function: The reversing alarm emits a warning tone as soon as reverse gear is engaged. In this way, it warns other road users of the backing vehicle. Warning alarms are available in different volumes depending on the application. For example, reversing alarms with a signal volume of approx. 90 dB are used in urban traffic and warning alarms with a volume of more than 100 dB are used on construction sites with very high ambient noise. A reversing alarm that is 3 dB louder than another one already has twice the volume.

Features

• Voltage from: 12V - Voltage to: 24V - Power consumption: 38W
• Length: 181mm - Width: 83mm - Height: 74mm
• Registration Type: ECE - Fulfils ECE norm.: R10 - Prot.type (IP Code): IP65
• Penetrating, long-range alarm sound
• Housing made of glass fibre reinforced nylon with integrated mounting bracket
• Insulated electronics with epoxy resin to protect against rust, moisture and vibration
• Various sound pressure level options for city traffic and construction sites
• Optional with automatic adaptation to environments with changing sound levels

Specifications

• Part number: 6049
• Hella number: 3SL 996 139-551
• Barcode (EAN): 4082300804218
• Brand: Hella
• Voltage from: 12 V
• Voltage to: 24 V
• Power Consumption: 38 W
• Sound Level 3: 112 dB(A)
• Sound Level 2: 107 dB(A)
• Sound Level: 97 dB(A)
• Protection Type per ISO 20653: IP65
• fulfils ECE standard: R10
• Registration Type: ECE approved
• Housing Colour: black
• Plug Type: DEUTSCH plug
• Operating Mode: Electric
• Cable Length: 150 mm
• Width: 83 mm
• Height: 74 mm
• Length: 181 mm
• Mounting Type: Bolted
• Product line: BM40

Assy./disassy. by qualified personnel required!
