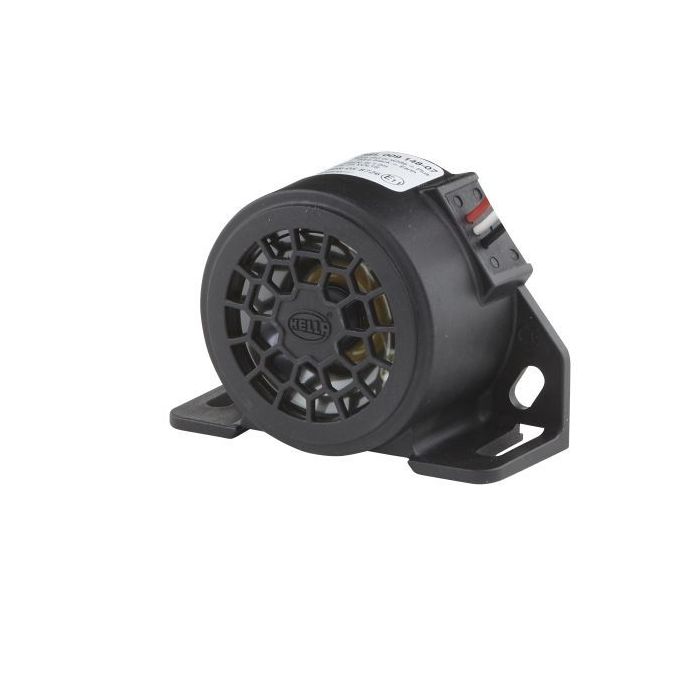

Hella 3SL009148071 Backup Alarm, Acoustic 1200 Hz

Hella 3SL009148071 Backup Alarm, Acoustic 1200 Hz

Genuine Hella backup alarm, acoustic 1200 hz.

Back-up Alarm - 102dB(A) - Frequency Range: 1200Hz - SAE - Bolted - Cable: 410mm - Plug: open cable ends - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

Features

• Frequency Range: 1200Hz - Voltage from: 12V - Voltage to: 24V
• Length: 101mm - Width: 46mm - Height: 74mm
• Registration Type: SAE - fulfils SAE norm: J994 (Typ F)
• Penetrating, long-range alarm sound
• Integrated protection against reverse polarity and voltage peaks.
• Splashproof according to IP 5K9K.
• SAE and e11 certified.

Specifications

• Part number: 3SL009148071
• Hella number: 3SL 009 148-071
• Barcode (EAN): 4082300155396
• Brand: Hella
• Voltage from: 12 V
• Voltage to: 24 V
• Length: 101 mm
• Width: 46 mm
• Height: 74 mm
• Mounting Type: Bolted
• fulfils SAE standard: J994 (Typ F)
• Registration Type: SAE approved
• Frequency Range: 1200 Hz
• Sound Level: 102 dB(A)
• Cable Length: 410 mm
• Plug Type: open cable ends

Assy./disassy. by qualified personnel required!
