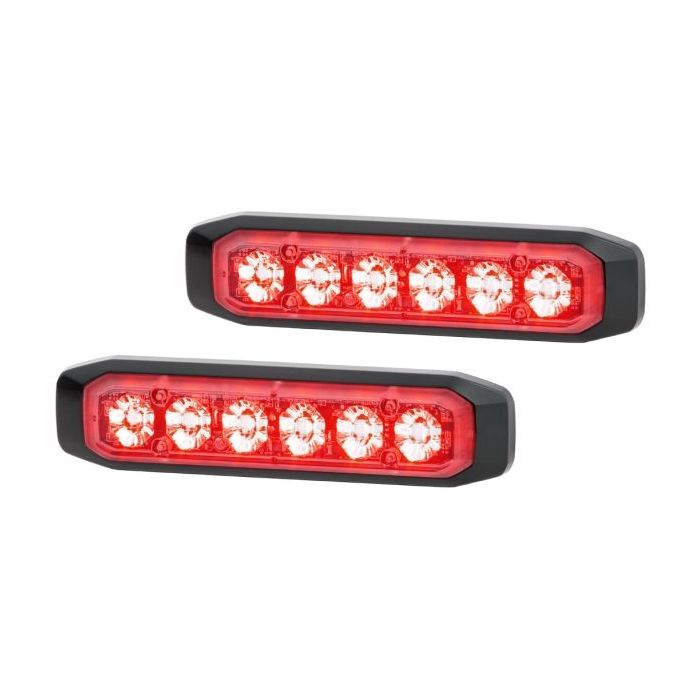

Hella 2XD014562701 LED Strobe-type Beacon Warning Light - Red

Hella 2XD014562701 LED Strobe-type Beacon Warning Light - Red

Hella 2XD014562701 LED Strobe-type Beacon Warning Light - Red

LED-Strobe-type Beacon - BST-Slim - 12/24V - Red - Screw Connection/mounting - Cable: 250mm - Plug: open cable ends - Kit - Quantity: 2

The BST warning light is available in different signal colours, dimensions and mounting variants. 3 or 6 power LEDs in the colours yellow, blue, red or white ensure an optimal signalling effect. The light can be synchronised with two or more units and has different flash sequences. In addition to the continuous light function, four different flash patterns can be set and are approved according to the European directive for beacons ECE-R65. The warning signal (single to quadruple flash) is either synchronous or alternating. Variants with "1 level" produce a constant level of brightness independent of the ambient light. Variants with "day/night mode", adjust the brightness to the ambient light. This ensures increased visibility during the day and the avoidance of glare at night. The housing is attached to the vehicle by means of screws for fixed mounting and by means of a bracket for bracket mounting. The warning system is also available as a slim version with a mounting height of only 12.8 mm. It is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The product can be mounted horizontally or vertically in various positions around the vehicle, depending on the variant. It is supplied as a set of 2.

Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.

Features

• Lamp Type: LED - Number of LEDs: 6 - Power consumption: 14W
• With flashing warning signal - Lens Colour: Crystal clear - LED colour: Red - Fastening Type: for horizontal fastening
• Registration Type: SAE - Fulfils ECE norm.: R10 - Prot.type (IP Code): IPX7/IPX9K
• Housing material: Aluminium - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Height: 32mm
• Can be synchronised with two or more units
• Besides continuous light, four different flash patterns (single, double, triple and quadruple flash) can be set
• Tested and approved according to the European Directive for beacons (ECE-R65 )
• Integrated day / night mode
• Slim version with an installation height of only 12.8 mm
• Brief Information

Specifications

• Part number: 2XD014562701
• Hella number: 2XD 014 562-701
• Barcode (EAN): 4082300763805
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Height: 32 mm
• Light Function: with flashing warning signal
• Light colour: red
• Number of LEDs: 6
• Plug Type: open cable ends
• Protection Type per ISO 20653: IPX7 / IPX9K
• fulfils ECE standard: R10
• Registration Type: SAE approved
• Fastening Type: for horizontal fastening
• Housing material: Aluminium
• Power Consumption: 14 W
• Lens Material: PC (Polycarbonate)
• Housing Colour: black
• LED Colour: red
• Lens Colour: Crystal clear
• Temperature range from: -40°C
• Temperature range to: 80°C
• Cable Length: 250 mm
• Weight: 76 g
• Quantity Unit: Kit
• Product line: BST-Slim

Follow nat. rules for attachment, install. and operation. Assy./disassy. by qualified personnel required!
