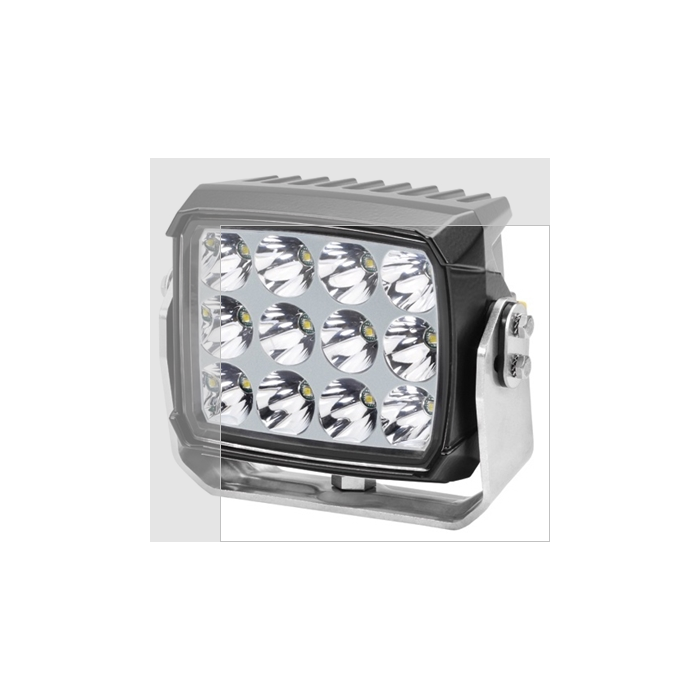

Hella 1GA996197021 RokLUME 380 N Long Range LED Work Lamp 24V

Hella 1GA996197021 RokLUME 380 N Long Range LED Work Lamp 24V

Hella 1GA996197021 RokLUME 380 N Long Range LED Work Lamp 24V

HELLA's RokLUME 380 N Work Lamp series has been specifically designed for mining applications. As such, these lights feature heavy duty stainless steel brackets that are resistant against vibration and sealed to IP6K9K/IP6K8 with corrosion proof housing and a high impact hard-coated PC lens. On top of this, the HELLA RokLUME work lamps come with double insulated silicone supply cable to give you peace of mind while working in tough environments. This Long Range beam version, will give you great distance of light throw.

As an approved HELLA Australia distributor this RokLUME 380 work lamp comes with a full 5 year HELLA warranty.

Part Number: 1GA996197021

Mount: Standing or hanging with heavy duty stainless steel surrounding bracket.

Voltage: 24V

Light Output: 7,500 Lumens

Power Consumption: 84 Watt

Colour Temperature: 5,000 Kelvin

Temperature Range: -40°C to +90°C

Cable: Double insulated silicone supply cable with DT connector with heavy duty cable gland.

Housing: Aluminium

Lens: High impact hard-coated PC.

Weight: 2.46kg

Protection:

• Reverse Polarity Protection
• Transient Spike Circuit Protection
• Thermal Management
• IP6K9K / IP6K8 (Protection against high-pressure cleaning/submersible)

Compliance: ECE-R10 | RCM

LED-Worklight - RokLUME 380N - 24V - 7800lm - mounting/Screw Connection - Swivelling Mounting Bracket - Long-range illumination - Cable: 300mm - Plug: DEUTSCH plug

The enormous luminous efficacy of up to 7,500 lumen provides more than twice as much light as a comparable xenon headlamp, turning night into day.

Optimally suited for the toughest operating conditions. In addition to the cover lens made of unbreakable polycarbonate, the aluminium housing is covered with a particularly robust NanoSafe coating.

The RokLUME 380 is hermetically sealed and therefore waterproof, submersible and resistant to high-pressure cleaning (IP 6K9K, IP 6K8).

The RokLUME 380 was developed for applications with particularly high lighting requirements. The enormous light output of up to 7,800 lumens provides more than twice as much light as a comparable xenon headlamp. In addition to the standard light distributions for close-range and long-range illumination, the RokLUME 380 is also available in the innovative glare-free illumination variant ZEROGLARE. This is a special illumination with lens optics. Oncoming vehicles are not dazzled and safety and working comfort are thus significantly increased. The 12 high-performance LEDs produce homogeneous illumination with a colour temperature of 5,000 Kelvin. This enables working conditions similar to daylight to be created even in very dark working conditions, and contrasts and colours to be perceived better, making it much easier for the human eye to perceive the senses and prevent eye fatigue. The RokLUME 380 is optimally suited for the toughest operating conditions. In addition to the shatterproof polycarbonate cover lens, the aluminium housing is coated with a particularly robust NanoSafe coating, ensuring the headlamp is well protected against external mechanical influences such as stone chips, water and salt. The RokLUME 380 is hermetically sealed and therefore watertight, submersible and resistant to high-pressure cleaning. The heavy-duty recirculating bracket and the innovative Nord-Lock screw system keep the headlamp in the right position at all times, even with strong vibrations. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with fluctuating operating voltages of 20 to 32 volts. Temperature sensors protect against overheating.

Features

• Lamp Type: LED - Number of LEDs: 12 - Power consumption: 84W - Colour Temperature: 5000K
• Clear diffusing lens
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K8
• Aluminium Housing - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Width: 179mm - Height: 148mm - Depth: 102mm
• The 12 high-power LEDs produce a homogeneous illumination.
• The heavy-duty rotating bracket and the innovative Nord-Lock screw system keep the spotlight in the right position even under strong vibrations

Specifications

• Part number: 1GA996197021
• Hella number: 1GA 996 197-021
• Barcode (EAN): 9002920156547
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: Swivelling Mounting Bracket
• Light Design: LED
• Lamp Type: LED
• Voltage: 24 V
• Height: 148 mm
• Width: 179 mm
• Depth: 102 mm
• Light Distribution: Long-range illumination
• fulfils ECE standard: R10
• fulfils test standard: RCM
• Plug Type: DEUTSCH plug
• Protection Type per ISO 20653: IP6K8 / IP6K9K
• Luminous Flux: 7800 lm
• Colour Temperature: 5000 K
• Number of LEDs: 12
• Power Consumption: 84 W
• Cable Length: 300 mm
• Housing Type: Aluminium Housing
• Housing Colour: black
• Lens Material: PC (Polycarbonate)
• Lens Type: clear lens
• Product line: RokLume 380N

Assy./disassy. by qualified personnel required!
