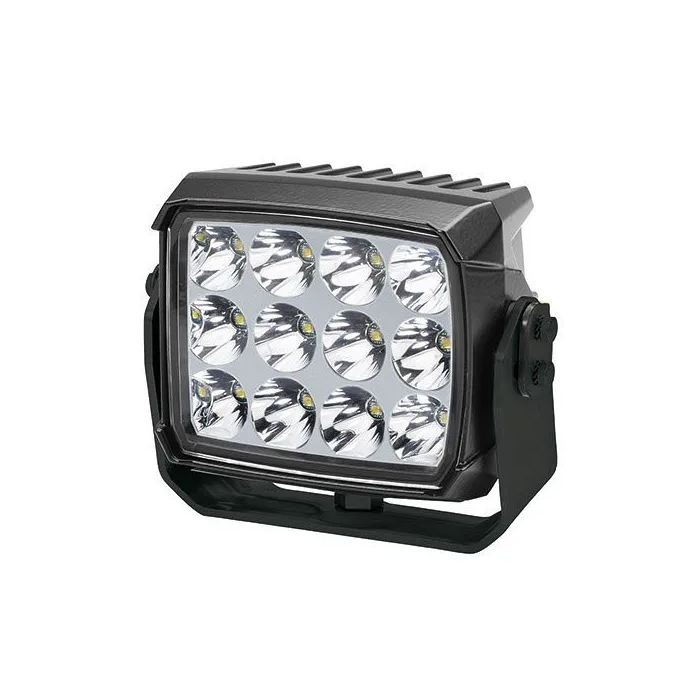

Hella 1FA996197181 RokLUME 380 N LED Driving Light - Pencil Beam 24V

Hella 1FA996197181 RokLUME 380 N LED Driving Light - Pencil Beam 24V

Hella 1FA996197181 RokLUME 380 N LED Driving Light - Pencil Beam 24V

The RokLUME 380 N Driving Light provides 7500 lumen, more than double the light of a comparable Xenon driving light. The 12 high-power LEDs create an extensive illumination at a colour temperature of 5000 Kelvin. The warmer colour temperature reduces glare from highly reflective road signs compared to 6500 Kelvin, predominately used by many LED driving lights.

With a mining pedigree, the RokLUME 380 N suits the toughest operating conditions due to the cover lens being made of impact-resistant and hard-coated polycarbonate, and the aluminium housing featuring a tough NanoSafe coating. The heavy-duty bracket and the innovative Nord-Lock screw system ensure the light remains in the correct position and does not vibrate even on corrugated roads. Reaching the highest rating in electromagnetic compatibility the RokLUME 380 N will not interfere with communication systems. The advanced thermal design ensures the light will not scale back light output.

 7500 Lumen output
• Aluminium housing with NanoSafe coating
• Completely sealed against dust and water

LED-Spotlight - RokLUME 380N - 24V - rectangular - Reference number: 40 - Clear diffusing lens - Crystal clear - Cable: 300mm - left/right

The 12 high-performance LEDs produce extremely wide-area, homogeneous illumination over a range of up to 400 m (1 lux) with a colour temperature of 5,000 Kelvin

The unbreakable and hard-coated polycarbonate cover lens and the aluminium housing with robust NanoSafe coating qualify the RokLUME 380 for the toughest conditions

The HELLA RokLUME 380 driving lamp was developed for heavy-duty applications with particularly high lighting requirements. The enormous light output provides more than twice as much light as a comparable xenon driving lamp and thus turns night into day. The 12 high-performance LEDs produce extremely wide-area and homogeneous illumination up to a range of 400 m (1 lux) with a colour temperature of 5,000 Kelvin. In very dark road conditions, conditions similar to daylight can be created at the side of the road for orientation, and contrasts and colours can be perceived better. This makes it much easier for the human eye to perceive the senses and prevents eye fatigue. The RokLUME 380 is optimally suited for the toughest operating conditions. In addition to the cover lens made of shatterproof and hard-coated polycarbonate, the aluminium housing is covered with a robust NanoSafe coating. This means that the headlamp is well protected against external mechanical influences such as stone chips, water and salt. The RokLUME 380 is hermetically sealed and therefore watertight, submersible to 1m water depth (max. 60 min.) and resistant to high-pressure cleaning (IP6K9K, IP6K8). The heavy-duty rotating bracket and the innovative Nord-Lock screw system always keep the headlamp in the right position, even with strong vibrations. The integrated electronics protect the unit in case of reverse polarity and ensures constant brightness even with fluctuating operating voltage. Temperature sensors protect the driving lamp from overheating. This ensures long service life of the LEDs and safe driving at night.

Features

• Width: 179mm - Height: 124mm - Depth: 102mm - Overall Height: 148mm - Lamp Type: LED - with LED - without cap
• Light functions: 1 - with high beam (LED)
• Fulfils ECE norm.: R112/R10
• Metal Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear
• Mounting Type: mounting/Bolted - Fastening Type: Swivelling Mounting Bracket
• The enormous light output provides more than twice as much light as a comparable xenon driving lamp, turning night into day
• Temperature sensors protect the spotlight from overheating. This ensures a long service life of the LEDs and safe driving at night
• The heavy-duty rotating bracket and the innovative Nord-Lock screw system keep the spotlight in the right position even under strong vibrations

Specifications

• Part number: 1FA996197181
• Hella number: 1FA 996 197-181
• Barcode (EAN): 9002920160155
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: Swivelling Mounting Bracket
• Light Design: LED
• Lamp Type: LED
• Voltage: 24 V
• Fitting Position: Left / Right
• Height: 124 mm
• Overall Height: 148 mm
• Width: 179 mm
• Depth: 102 mm
• Light Function: with high beam (LED)
• Number of light functions: 1
• fulfils ECE standard: R10 / R112
• Reference number: 40
• Cable Length: 300 mm
• Housing Colour: black
• Lens Colour: Crystal clear
• Frame Colour: black
• Shape: rectangular
• Housing Type: Metal Housing
• Lens Type: clear lens
• Product line: RokLume 380N

without cap with LED Assy./disassy. by qualified personnel required!
